Main advantages:

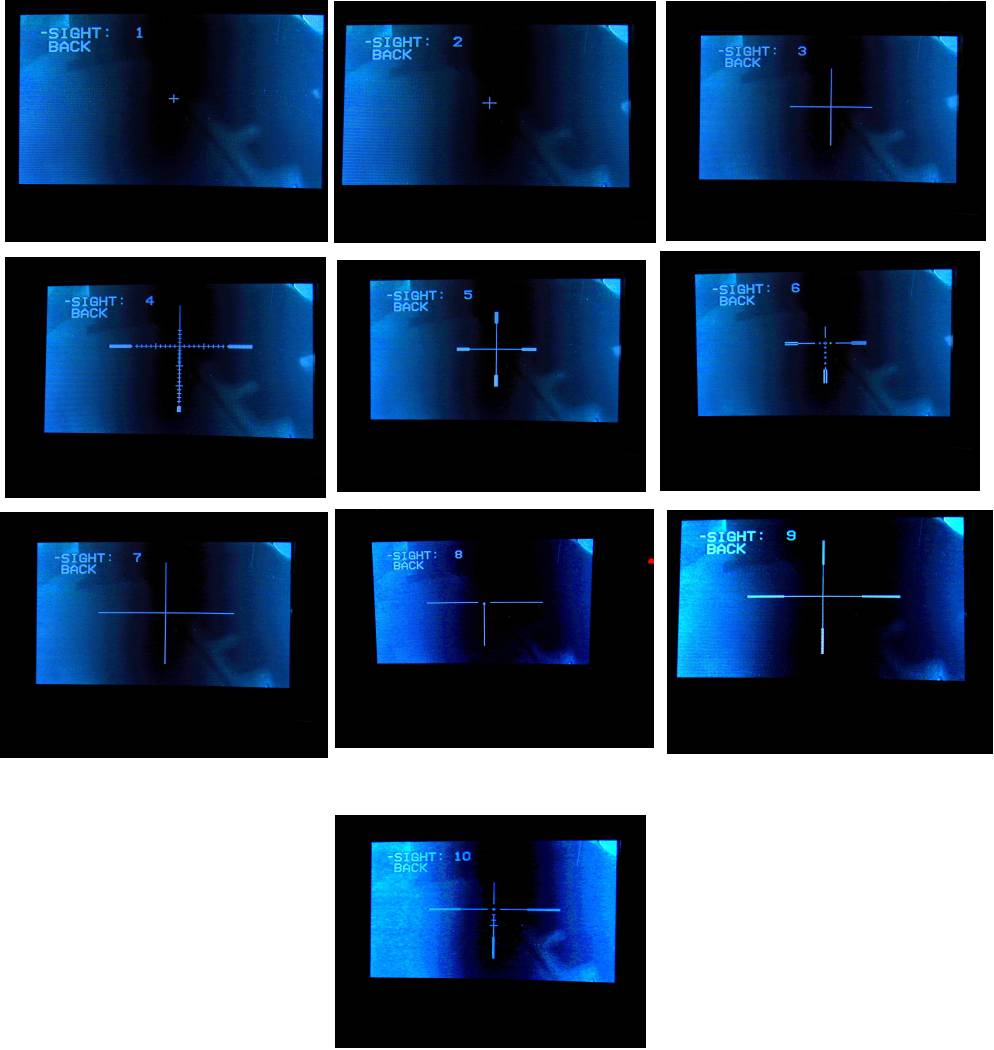

+ 10 reticles to choose the from
+ horizontally and vertically wide range the reticle moving
+ Electronic Level on the LCD screen
+ Bluetooth module
+ Rangefinder puts the Range and Angle of the LCD screen
+ BBC module ( ballistic calculation)
+ Battery Indicator
+ 3 buttons for setup and operation
+ one push to switch to output for black or white cross-hair and Electronic Level
+ PAL or NTSC system
Device purpose.
OSD BLE RangeFinder Controller is designed to overlay text and / or graphic information onto a video
image received from an analog video camera (PAL / NTSC) and display this information on an LCD
display or viewer. Thus, the image from the video camera and text and graphic information from the
controller will be visible on the display.
OSD BLE RangeFinder Controller is an integral part for building day and night sights.

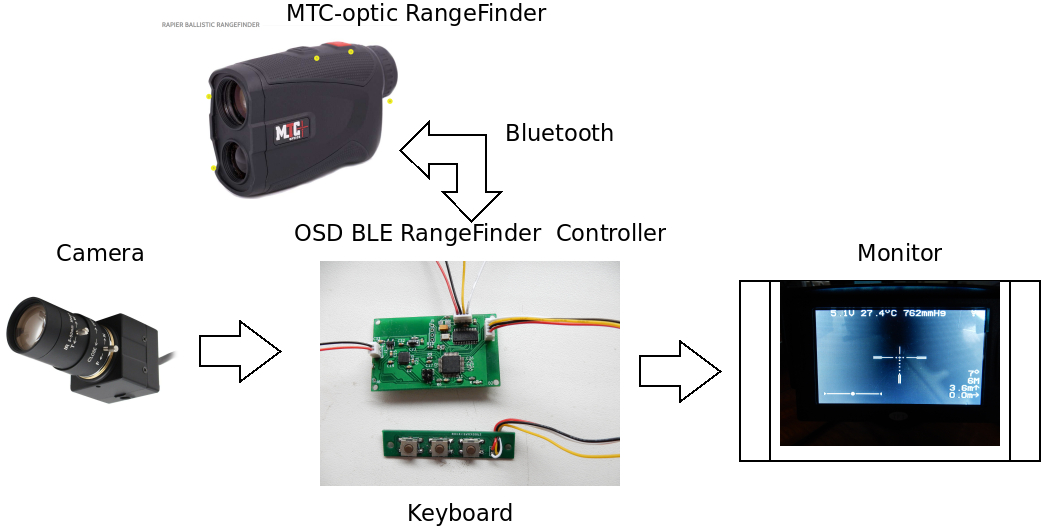

The OSD BLE RangeFinder Controller has a Bluetooth module and can accept the range and angle
from the MTC-optic range finder or another range finder with the same command system.
This data is also displayed directly on the LCD display as are corrections from the ballistic calculation
unit (BBC).
OSD BLE RangeFinder Controller is powered from + 3.3V to + 5V
Video input and output parameters (standard): composite video signal, 0.7 ... 1V
System: PAL or NTSC

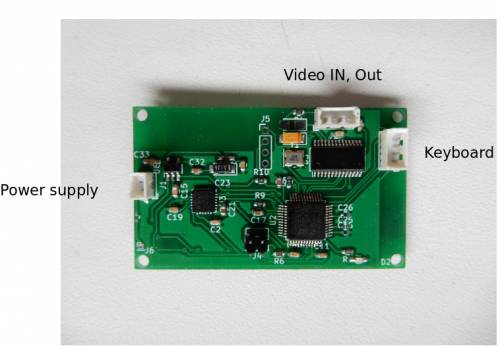

OSD BLE RangeFinder Controller is simply connected to the system with 3 connectors, pitch 1.25mm
Board size: 50x30mm

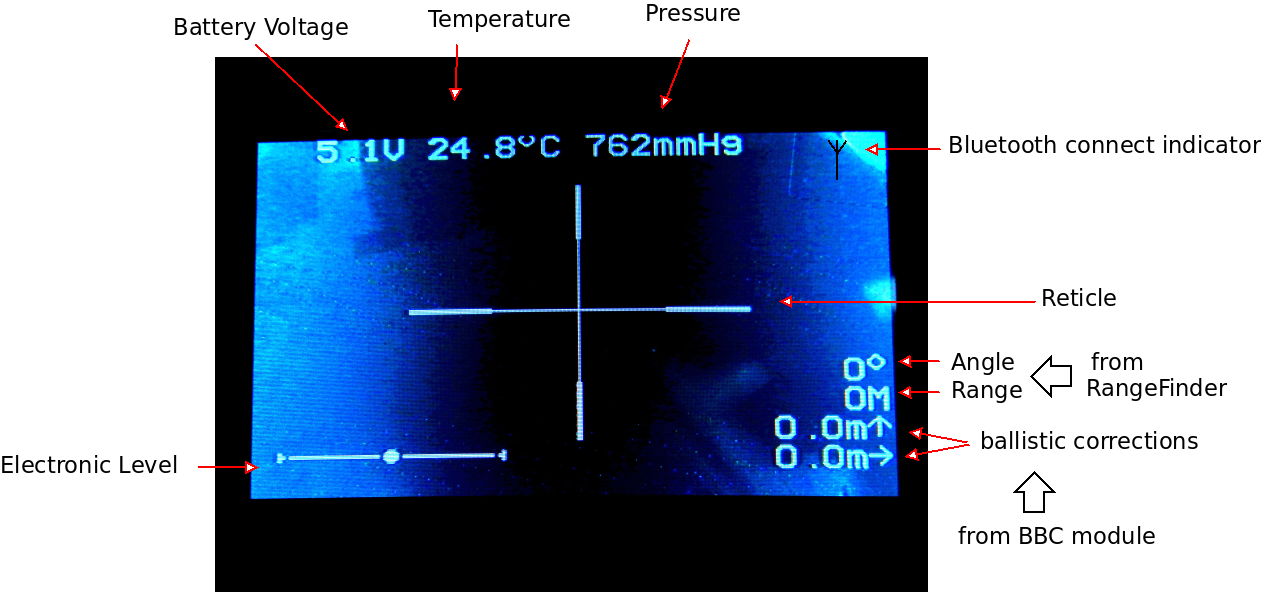

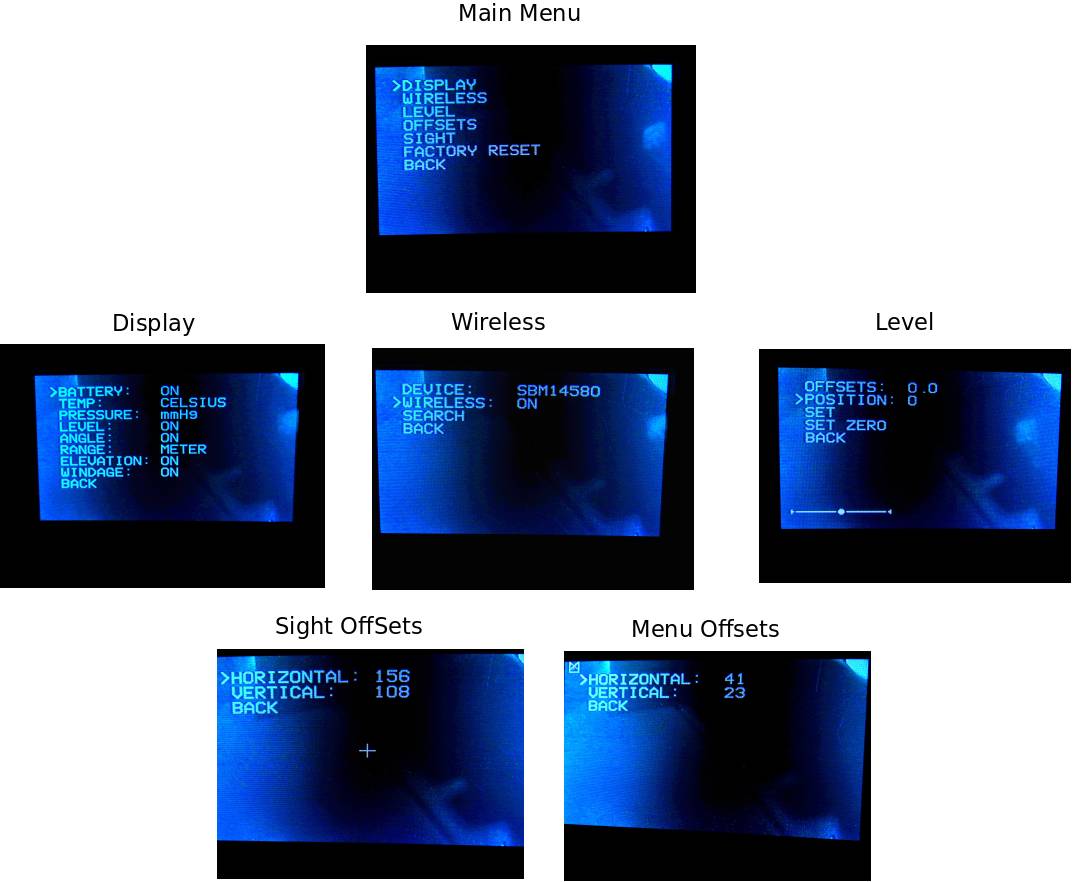

Fig 4. View of the main screen
Contents of delivery:
1- OSD BLE RangeFinder Controller
2- wires with a 4-pin connector for connecting to a camcorder and monitor,
3- wires with a 2-pin connector for connecting to a power device
4- keyboard with wires and 4-pin icon indicator.
