Osram, OSLON Black LEDs for Dummies

Post by Rocketvapor » 11 Jun 2016, 14:10

Probably common knowledge but here is the breakdown for Osram IR LEDs we seem to be using the most.
The 4715, 4716 850 nm and the 4725, 4726 940 nm
The 4715/4725 +/- 45 degree half power, and the 4716/4726 +/- 75 degree half power,
The Basic 1 amp chip, the 'A' Enhanced 1.5 amp 'No line', the 'S' Series connected,
and the 'AS' Enhanced 1.5 amp No Line, series connected versions.

850nm +/- 45 Degree half power
4715 1.0 amp, 1.7 volt Basic
4715S 1.0 amp, 3.2 volt Basic, series connected
4715A 1.5 amp, 1.7 volt Enhanced
4715AS 1.5 amp, 3.2 volt Enhanced series connected

850nm +/- 75 Degree half power
4716
4716S 1.0 amp, 3.2 volt Basic, series connected
4716A 1.5 amp, 1.7 volt Enhanced
4716AS 1.5 amp, 3.2 volt Enhanced series connected


940nm +/- 45 Degree half power
4725
4725A
4725S 1.0 amp, 3.2 volt Basic, series connected
4725AS

940nm +/- 75 Degree half power
4726
4726A
4726S 1.0 amp, 3.2 volt Basic, series connected
4726AS

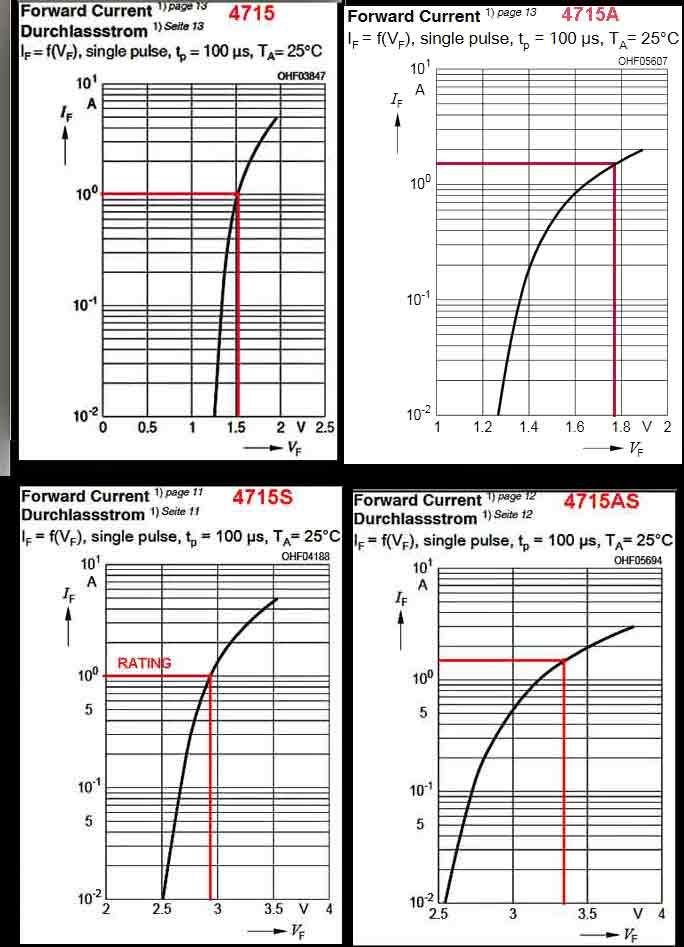

Here's the voltage/current curves for the basic, the enhanced, the series connected, and the enhanced series connected.
Learn one thing, just one little thing, every day of your life.

Thulfiqar
Posts: 43
Joined: 21 Nov 2015, 16:23
Location: istanbul

Re: Osram, OSLON Black LEDs for Dummies

Post by Thulfiqar » 02 Jan 2017, 15:56

Excellent member , Thanks alot for the info :thumbup:

lightmesser
Posts: 554
Joined: 09 Jan 2014, 01:19
Location: Eastern Europe

Re: Osram, OSLON Black LEDs for Dummies

Post by lightmesser » 06 Jan 2017, 22:42

Rocketvapor wrote:
940nm +/- 45 Degree half power
4725AS

940nm +/- 75 Degree half power

4726AS
Rocketvapor,

I did not knew that this emitters are released.

Any info where we could order them.

Thanks ;)

superslack
Posts: 78
Joined: 08 Feb 2016, 23:58
Location: Virginia

Re: Osram, OSLON Black LEDs for Dummies

Post by superslack » 02 Feb 2017, 22:34

I haven't seen the 940 nm AS series for sale anywhere....or even officially announced. Am I missing something?

lightmesser
Posts: 554
Joined: 09 Jan 2014, 01:19
Location: Eastern Europe

Re: Osram, OSLON Black LEDs for Dummies

Post by lightmesser » 02 Feb 2017, 23:00

superslack wrote:I haven't seen the 940 nm AS series for sale anywhere....or even officially announced. Am I missing something?
It is very good that you replied cause I also thought that I am missing something here :eh:

I would really like new 940NM AS.. Looking forward for any new info.

snipertez
Posts: 58
Joined: 01 Jan 2014, 10:20
Location: Devon, near Exeter

Re: Osram, OSLON Black LEDs for Dummies

Post by snipertez » 08 Oct 2017, 15:01

I am also very interested in this new 940nm AS led, , , is there any news ???

phoenix
BRUCE ALMIGHTY
Posts: 4838
Joined: 09 May 2012, 14:40
Location: Aberdeen

Re: Osram, OSLON Black LEDs for Dummies

Post by phoenix » 08 Oct 2017, 16:00

Rocketvapour made a mistake in his original post.
The news is that there is no AS version of the oslon in 940nm and no announcements of any plans to produce such an LED.
I wouldn't bother waiting for one to appear, just get on and use the 4725S.

Cheers

Bruce
LAND ROVER - THE WORLD'S WORST 4X4 BY FAR

snipertez
Posts: 58
Joined: 01 Jan 2014, 10:20
Location: Devon, near Exeter

Re: Osram, OSLON Black LEDs for Dummies

Post by snipertez » 09 Oct 2017, 05:33

Ok Bruce, many thanks

Darren.R
Posts: 179
Joined: 07 Dec 2013, 13:08
Location: NW Norfolk

Re: Osram, OSLON Black LEDs for Dummies

Post by Darren.R » 09 Oct 2017, 08:29

Coincidentally, I just received confirmation from an Osram contact through work that the 940nm AS will be released by the end of this year. He also kindly sent through some samples to test... pic in below link.

https://my.pcloud.com/publink/show?code ... 9dFSPWS6LV

Atb,
Darren.

snipertez
Posts: 58
Joined: 01 Jan 2014, 10:20
Location: Devon, near Exeter

Re: Osram, OSLON Black LEDs for Dummies

Post by snipertez » 10 Oct 2017, 06:20

Just when my plans looked sunk Darren, :clap: you are a star. Many thanks for the info.

Will you be selling these ? As l would be very interested in one.

Many thanks again for sharing :thumbup:

Post Reply
