screen suitable for loupe?

Post by BUNNYBLASTER6 » 16 Oct 2014, 15:47

Hi all,

is there a screen with suitable resolution to suit a GGS 3x LCD veiwing loupe ( ideally for 3" screen).
I know this may well be old hat and i'm way behind the times but i've a watec 902h sitting around and fancied a go - the only thing is i'm not keen on screen / heads up displays and prefer to " view through".
That said, can anyone direct me to threads re: near eye display builds if the above is un-achievable.

Cheers,

Mike

BUNNYBLASTER6
Posts: 18
Joined: 09 Oct 2012, 21:04
Location: measham, Derbys.

Re: screen suitable for loupe?

Post by BUNNYBLASTER6 » 17 Oct 2014, 08:58

Anyone? :(

User avatar
Torchwood
Posts: 1601
Joined: 04 Oct 2012, 23:25
Location: Barnet, london

Re: screen suitable for loupe?

Post by Torchwood » 17 Oct 2014, 12:31

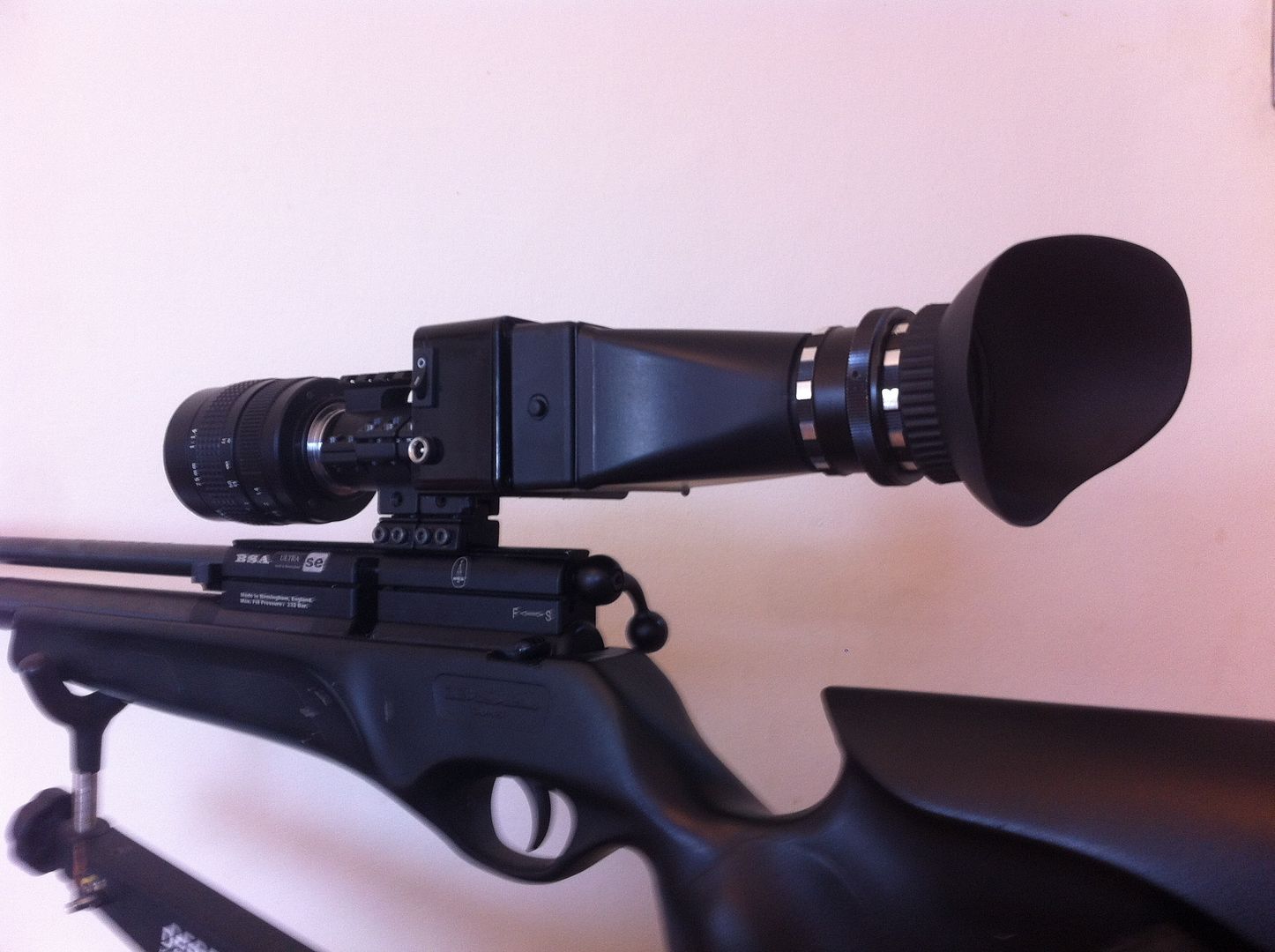

2.5" bare bone screen inside a project box. Is this what you after? Loupe is perfect fit on the box.

The link for the screen dosent work, may be out of stock, will try to find a similar one. £38 posted it was early spring this year.

http://www.adafruit.com/product/912

Toni

User avatar
some bloke
TRADER MEMBER
Posts: 7492
Joined: 27 Jan 2012, 16:14
Location: Cornwall or Leicester

Re: screen suitable for loupe?

Post by some bloke » 17 Oct 2014, 13:33

Link worked after a delay Toni. :thumbup:

BUNNYBLASTER6
Posts: 18
Joined: 09 Oct 2012, 21:04
Location: measham, Derbys.

Re: screen suitable for loupe?

Post by BUNNYBLASTER6 » 17 Oct 2014, 15:34

Thanks for the info Toni, appreciated :thumbup:

Mike

bones61
Posts: 176
Joined: 08 Nov 2013, 12:36
Location: cornwall

Re: screen suitable for loupe?

Post by bones61 » 17 Oct 2014, 16:14

whats the picture like on these ere little screens young mr torchwood if you dont mind me asking
the problem with the written word is it has no tone of voice

User avatar
Torchwood
Posts: 1601
Joined: 04 Oct 2012, 23:25
Location: Barnet, london

Re: screen suitable for loupe?

Post by Torchwood » 17 Oct 2014, 17:13

bones61 wrote:whats the picture like on these ere little screens young mr torchwood if you dont mind me asking
I would say it's almost hd, a while back someone published some figures here, a offing to that, resolution was quite high. Put it in simple words, you can't see the pixels when looking with loupe. Those using angle eye or camcorder viewfinder can tell you the pixels is a major drawback.

This is where I got mine, but the linked to the product that I saved dosent work.
http://www.phenoptix.com/collections/ad ... afruit-912

Toni

bones61
Posts: 176
Joined: 08 Nov 2013, 12:36
Location: cornwall

Re: screen suitable for loupe?

Post by bones61 » 17 Oct 2014, 17:43

thank you mate . i think ill order a couple to play with and see what i can bodge together . would you say the 2 inch one would be as good . the 1.5 is lower res so im guessing that ones not so coco

your first link is working mate , well for me at any rate
the problem with the written word is it has no tone of voice

User avatar
Torchwood
Posts: 1601
Joined: 04 Oct 2012, 23:25
Location: Barnet, london

Re: screen suitable for loupe?

Post by Torchwood » 17 Oct 2014, 18:58

I cracked my first one, the screen is very fragile, I was very carefull with the second one. I have no experience with 2" version, judging by the 2.5", it can't be bad, I was tempted but settled for 2.5". If using same project box, you'll have plenty room inside for expansion. I have a osd voltage meter that I'm planing to house inside mine when I'm done with chopping and changing.

Toni

bones61
Posts: 176
Joined: 08 Nov 2013, 12:36
Location: cornwall

Re: screen suitable for loupe?

Post by bones61 » 18 Oct 2014, 09:11

thank you mate . i may need to order three once ive had my clumsy mits round em im bound to break at least one

do you think the screens will hold up to recoil from a springer , and what size is the box you have it in please young man
