16mm lens

Post by yammo » 13 Jul 2014, 21:51

hi Guys i want to get a 16mm fixed board lens for an add on but what i want to know is what is the best AOV i should go for
Yammo

User avatar
22-250jock
Posts: 2350
Joined: 07 Dec 2012, 17:53
Location: Burgess Hill, west sussex

Re: 16mm lens

Post by 22-250jock » 14 Jul 2014, 06:59

mornin yammo

this is the best m12 16mm board lense i've found so far.....http://www.ebay.co.uk/itm/370573986988? ... 1439.l2649

cheers jock
“When guns are outlawed, only the Government will have guns. The Government - and a few outlaws. If that happens, you can count me among the outlaws.”
― Edward Abbey,

User avatar
jdk1
Posts: 1949
Joined: 13 Aug 2012, 17:11
Location: west kingsdown kent

Re: 16mm lens

Post by jdk1 » 14 Jul 2014, 16:35

22-250jock wrote:mornin yammo

this is the best m12 16mm board lense i've found so far.....http://www.ebay.co.uk/itm/370573986988? ... 1439.l2649

cheers jock
They are also pretty quick delivery :thumbup:

User avatar
yammo
Posts: 42
Joined: 09 Jan 2012, 12:13
Location: Dublin Ireland
Contact:

Re: 16mm lens

Post by yammo » 14 Jul 2014, 18:33

evening Jock

thanks for the info on the 16mm lens looking at the spec i see its a 20 degree aov for some reason i thought the aov was to be tighter than that something around 12 degrees so it doeskin really matter what the aov is on a 16 mm lens

yammo.

poppy mae
Posts: 1234
Joined: 19 Aug 2012, 21:21
Location: Wirral Chesire

Re: 16mm lens

Post by poppy mae » 14 Jul 2014, 18:44

Stock optics do one, bit more expensive, but they are a big improvement ......

User avatar
chas
Banned again
Posts: 1658
Joined: 15 Oct 2011, 22:10
Location: East Riding.

Re: 16mm lens

Post by chas » 14 Jul 2014, 18:56

I don't know what angle they quote for these lenses, it might be horizontal, vertical or diagonal, they're all different.
Have a quick play here http://www.sweeting.org/mark/lenses/cctv.php it's not gospel but is a good indicator.
The tool driving this vehicle is removed at night. Sometimes.

User avatar
22-250jock
Posts: 2350
Joined: 07 Dec 2012, 17:53
Location: Burgess Hill, west sussex

Re: 16mm lens

Post by 22-250jock » 14 Jul 2014, 20:06

Yammo

not sure about which aov is best, all I know is this lets in a hell of a lot more light and gives a really good picture ;)

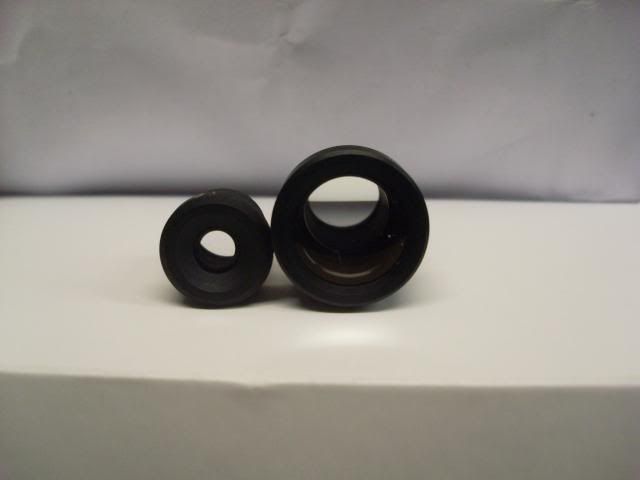

as a comparison, here's a pic.......the one on the left is the standard 16mm lens that sure fit to the E700..the one on the right is the one in the link


cheers jock
“When guns are outlawed, only the Government will have guns. The Government - and a few outlaws. If that happens, you can count me among the outlaws.”
― Edward Abbey,

User avatar
chas
Banned again
Posts: 1658
Joined: 15 Oct 2011, 22:10
Location: East Riding.

Re: 16mm lens

Post by chas » 14 Jul 2014, 22:00

That's an impressive comparison, working out the sums from the pic it sems the better lens has around about 625% more glass area.
Got to be good.
The tool driving this vehicle is removed at night. Sometimes.

User avatar
snoopy
Posts: 2619
Joined: 22 Jun 2012, 23:22
Location: NER NER LOL stoke on trent

Re: 16mm lens

Post by snoopy » 14 Jul 2014, 23:57

dare i bring up the elisive 14mm lens? :crazy: :lolno:
'who is that masked man? its the kemosabby der..the bloody injun tells you every week!'

User avatar
chas
Banned again
Posts: 1658
Joined: 15 Oct 2011, 22:10
Location: East Riding.

Re: 16mm lens

Post by chas » 15 Jul 2014, 14:28

snoopy wrote:dare i bring up the elisive 14mm lens? :crazy: :lolno:
Are we to assume you've swallowed one :wtf:
