Finished my first nv set up

Post by Mart1n » 12 Jan 2014, 10:28

Hello folks

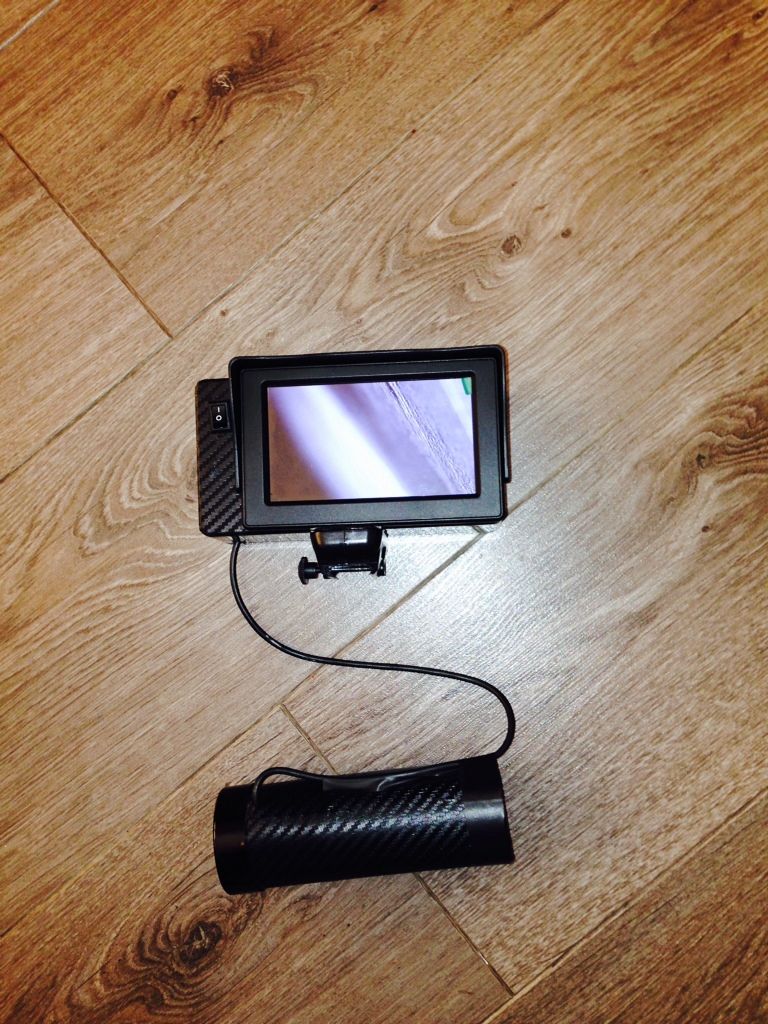

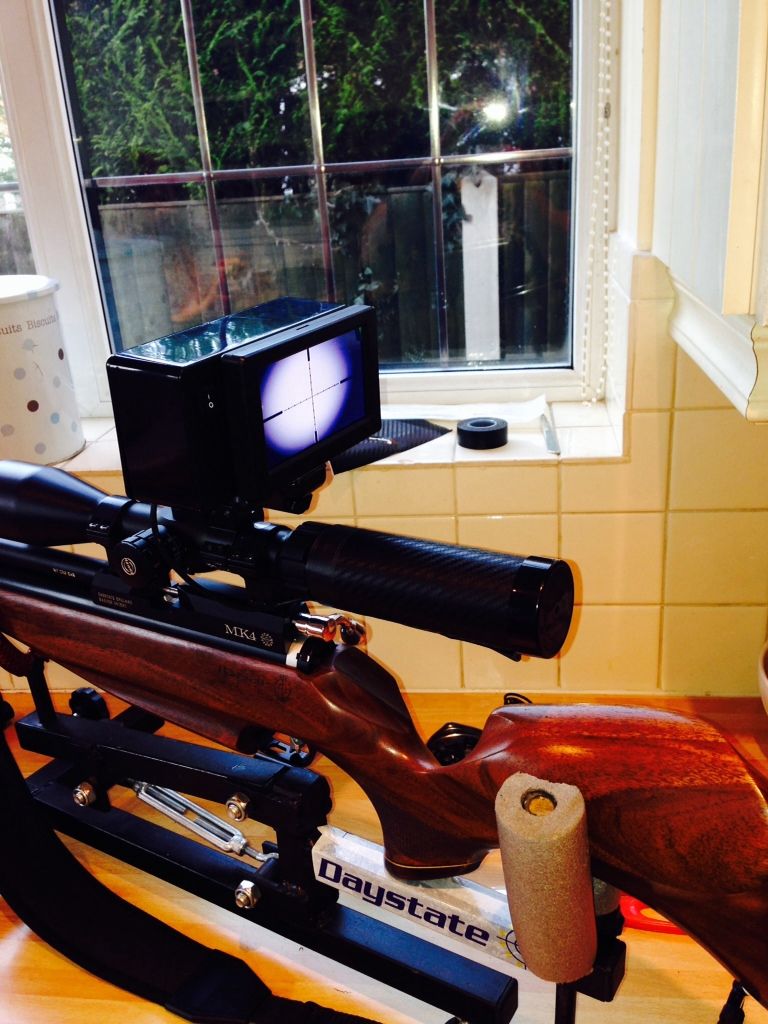

Just an update on my nv
It's turned out a little bigger than I wanted but all the wires , battery's and connections
Are inside the box that the screen mounts to and the charging point is underneath the screen
iv an idea the slim it down by only fitting the screen the the mount and fitting a small battery pack in the scope tube with the camera but that will have to be mk2
I wanted to keep it as wire free as possible
I'm going out to night to test it so I'll have a better idea what I need to change after iv used it for a while

Atb. Martin.



andybig
Posts: 916
Joined: 11 Sep 2013, 00:24
Location: coventry

Re: Finished my first nv set up

Post by andybig » 12 Jan 2014, 10:37

Thats impressive for a first build :clap:
Its loads neater than my builds.

PESCA

Re: Finished my first nv set up

Post by PESCA » 12 Jan 2014, 10:38

You must be well happy with that. It's a lovely build :thumbup:

Guessing that MK2 will be a stunner.

George

Mart1n
Posts: 89
Joined: 30 Dec 2013, 20:12
Location: Sheffield

Re: Finished my first nv set up

Post by Mart1n » 12 Jan 2014, 10:48

Total cost is £104 including the t20 IR
That's not bad going for a working NV
I could of saves money by ordering parts from china but I didn't want to wait
The cogs are ticking already for my next one :)

subzeer0
Posts: 45
Joined: 02 Dec 2013, 12:53
Location: East of Durham..West of Sunderland

Re: Finished my first nv set up

Post by subzeer0 » 12 Jan 2014, 10:53

looks very similar tot hte one we have just done...altho i used this board to mount the wires, so no joints

http://www.ebay.co.uk/itm/Copper-Protot ... 2a1897fe5b

and cut the project box to accommodate the screen inside

but this nv malarky is very compulsive once you start...lol

Mart1n
Posts: 89
Joined: 30 Dec 2013, 20:12
Location: Sheffield

Re: Finished my first nv set up

Post by Mart1n » 12 Jan 2014, 11:00

subzeer0 wrote:looks very similar tot hte one we have just done...altho i used this board to mount the wires, so no joints

http://www.ebay.co.uk/itm/Copper-Protot ... 2a1897fe5b

and cut the project box to accommodate the screen inside

but this nv malarky is very compulsive once you start...lol
Will you put on a pic of yours please
I'd thought about putting the screen in the box but couldn't get the cut clean enough
So I'd like to see how you did it
:)

subzeer0
Posts: 45
Joined: 02 Dec 2013, 12:53
Location: East of Durham..West of Sunderland

Re: Finished my first nv set up

Post by subzeer0 » 12 Jan 2014, 11:04

ill try later ....its on another gun at the moment and not here,,,sorry

User avatar
jdk1
Posts: 1949
Joined: 13 Aug 2012, 17:11
Location: west kingsdown kent

Re: Finished my first nv set up

Post by jdk1 » 12 Jan 2014, 12:10

Mart1n wrote:
subzeer0 wrote:looks very similar tot hte one we have just done...altho i used this board to mount the wires, so no joints

http://www.ebay.co.uk/itm/Copper-Protot ... 2a1897fe5b

and cut the project box to accommodate the screen inside

but this nv malarky is very compulsive once you start...lol
Will you put on a pic of yours please
I'd thought about putting the screen in the box but couldn't get the cut clean enough
So I'd like to see how you did it
:)
You dont have to worry about getting the cut too clean , i have done this with a couple of screens and all i used was a dremmel with a little deburring tool ( i think thats what its called :oops: ) it cuts through the plastic nicely then i just finish the edges off with the grinder bits

User avatar
22-250jock
Posts: 2350
Joined: 07 Dec 2012, 17:53
Location: Burgess Hill, west sussex

Re: Finished my first nv set up

Post by 22-250jock » 12 Jan 2014, 12:17

nice work Martin :clap:

great first build there mate

another one hooked :lol: :lol: .............................this site should come with a wealth warning :oops:

cheers jock
“When guns are outlawed, only the Government will have guns. The Government - and a few outlaws. If that happens, you can count me among the outlaws.”
― Edward Abbey,

User avatar
flykilla
Posts: 85
Joined: 20 Apr 2013, 21:50
Location: Guildford, Surrey

Re: Finished my first nv set up

Post by flykilla » 12 Jan 2014, 12:23

Excellent stuff.. Nice and tidy. Well done.

P.s How did you secure the addon to the scope in the end?

P.s You might want to put some green (Or what ever colour) gel filter sheet on your monitor screen to minimise the glare.
