The start of my DIY nv mk1

Post by Mart1n » 05 Jan 2014, 20:20

Hello folks I thought I'd show the start to my home build nv

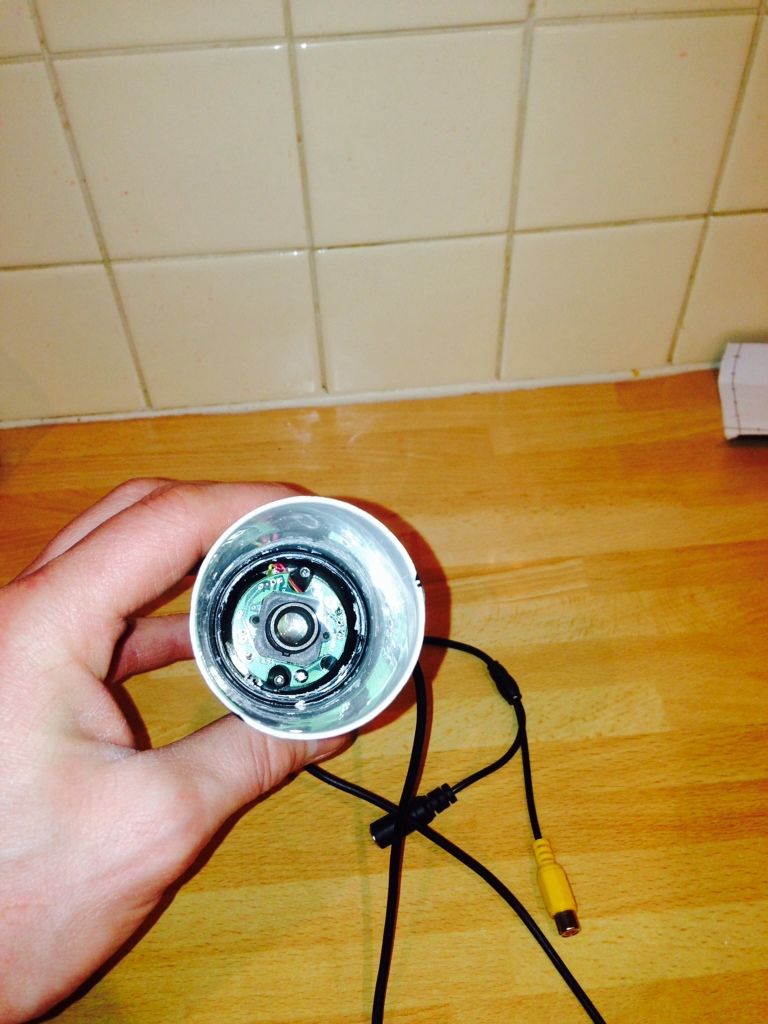

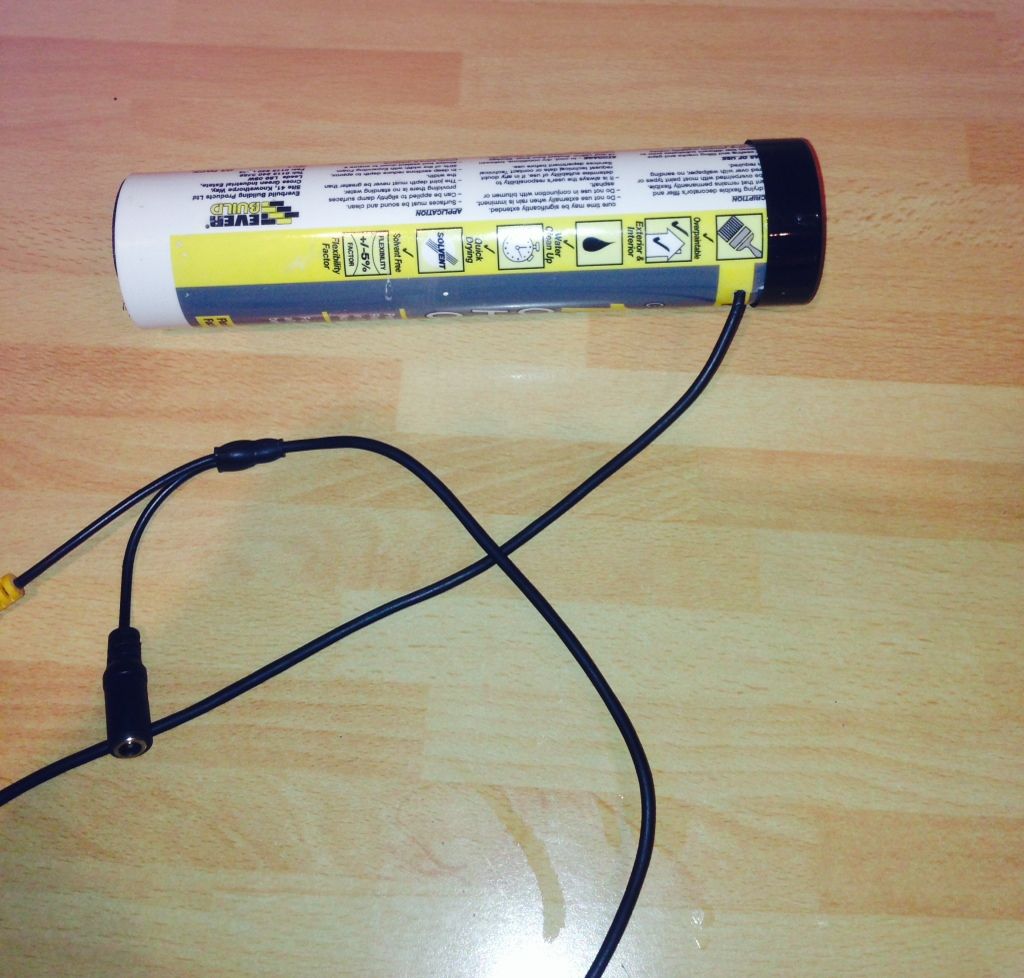

So for its cost £0 iv used a cctv camera that I was given. A bath sealant empty tube and a roll on deodorant lid
All sounds a bit blue peter but iv been out tonight with it hooked up to my mates screen and IR torch and it works perfect

Its a perfect fit over my sidewinder scope and very solid

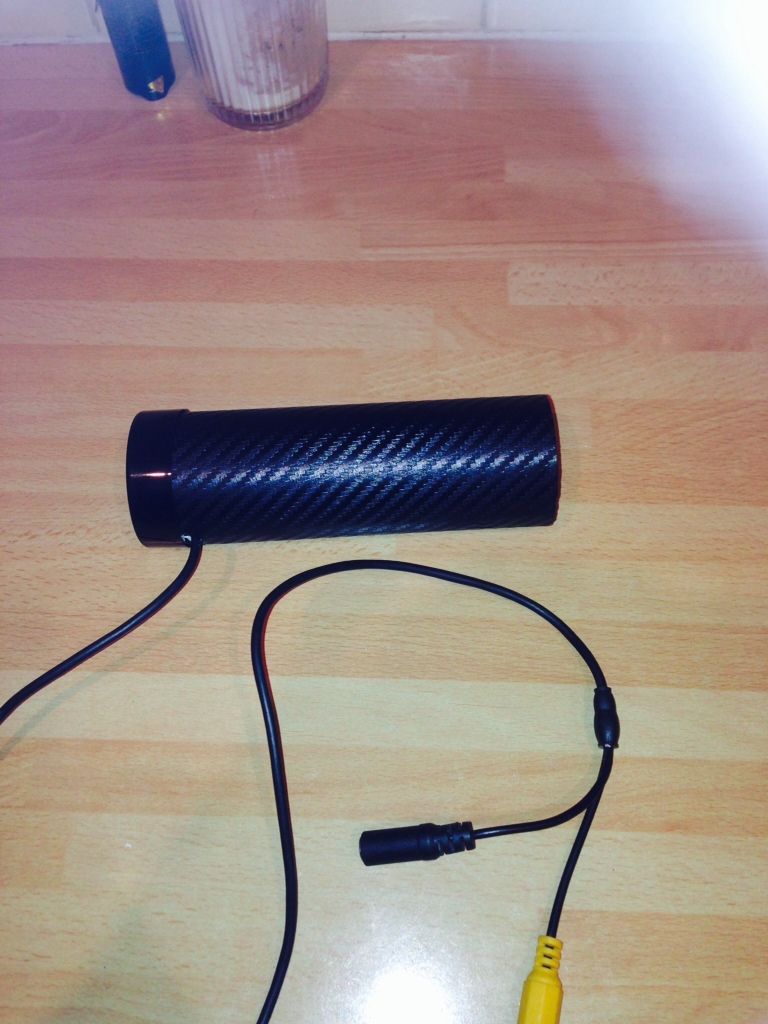

Iv finished it off with some carbon wrap the next step is to integrate the screen and battery in a box with all the wires so there will be only 1 wire from the camera
I'll keep you all posted :)
Cheers mart




david bennett
Posts: 86
Joined: 11 Nov 2013, 22:24
Location: monmouth s wales

Re: The start of my DIY nv mk1

Post by david bennett » 05 Jan 2014, 20:39

LOOKS NEAT MATE

User avatar
NitroJoe
Posts: 122
Joined: 06 Nov 2013, 22:14
Location: Somerset

Re: The start of my DIY nv mk1

Post by NitroJoe » 05 Jan 2014, 20:43

Good stuff. I love how a bit of carbon wrap can really make it look the business 8-)

Mart1n
Posts: 89
Joined: 30 Dec 2013, 20:12
Location: Sheffield

Re: The start of my DIY nv mk1

Post by Mart1n » 05 Jan 2014, 20:49

NitroJoe wrote:Good stuff. I love how a bit of carbon wrap can really make it look the business 8-)
I know it's mad how it changes the look so much
Over the next week I'll be putting the screen together to keep it wire free :)
With the battery
Iv some ideas of how I want it to look but it will be done on the fly if it comes out as good as the camera I'll be happy
Atb. Mart

User avatar
some bloke
TRADER MEMBER
Posts: 7492
Joined: 27 Jan 2012, 16:14
Location: Cornwall or Leicester

Re: The start of my DIY nv mk1

Post by some bloke » 05 Jan 2014, 21:49

That's a good bit of Blue Petering: Looks like you are getting the hang of things.

Can you put some wood in the rig somewhere - something like this perhaps? :D

http://img.photobucket.com/albums/v695/ ... dlamp2.jpg

Mart1n
Posts: 89
Joined: 30 Dec 2013, 20:12
Location: Sheffield

Re: The start of my DIY nv mk1

Post by Mart1n » 05 Jan 2014, 22:22

some bloke wrote:That's a good bit of Blue Petering: Looks like you are getting the hang of things.

Can you put some wood in the rig somewhere - something like this perhaps? :D

http://img.photobucket.com/albums/v695/ ... dlamp2.jpg

Lol. Iv got some 2x4 in the shed I'll see what I can do :crazy:

PESCA

Re: The start of my DIY nv mk1

Post by PESCA » 05 Jan 2014, 22:40

Nowt wrong with that build, mate :thumbup:

George

pcpellet
Posts: 30
Joined: 16 Jan 2013, 02:17
Location: Deepest darkest Ireland :-)

Re: The start of my DIY nv mk1

Post by pcpellet » 06 Jan 2014, 01:32

Carbon wrap looks really well and a nice neat little build coming along there using the mastic tubing :-)

Begs the question though..............................

.................is there ANYTHING which cannot be done with silicone these days, eh :-)

:L
I used to say many many silly things. I still do; but I used to :-)

sedstar
Posts: 1354
Joined: 21 Apr 2013, 23:13
Location: across the pond, PA, the states...

Re: The start of my DIY nv mk1

Post by sedstar » 06 Jan 2014, 02:50

2 thumbs up on the build... my first DSA's (though i didnt call them that at the time, lol) were mainly build around, of all things? A empty and washed out tube that held "brut" deodorant... fit over my 40mm scope eyepieces perfect about, lol...

i'll have to look into "carbon fiber wrap" to put around an improvised design... looks interesting...
Well, I understand that, boys... but see, my CAT gets the silly idea you're making fun of HIM... then he gets, *really* mean...

User avatar
flykilla
Posts: 85
Joined: 20 Apr 2013, 21:50
Location: Guildford, Surrey

Re: The start of my DIY nv mk1

Post by flykilla » 06 Jan 2014, 13:13

Love it. You can't beat a mastic tube and carbon fibre wrap.
