big thanks to all for the help

Post by Hardtail » 20 Feb 2016, 15:11

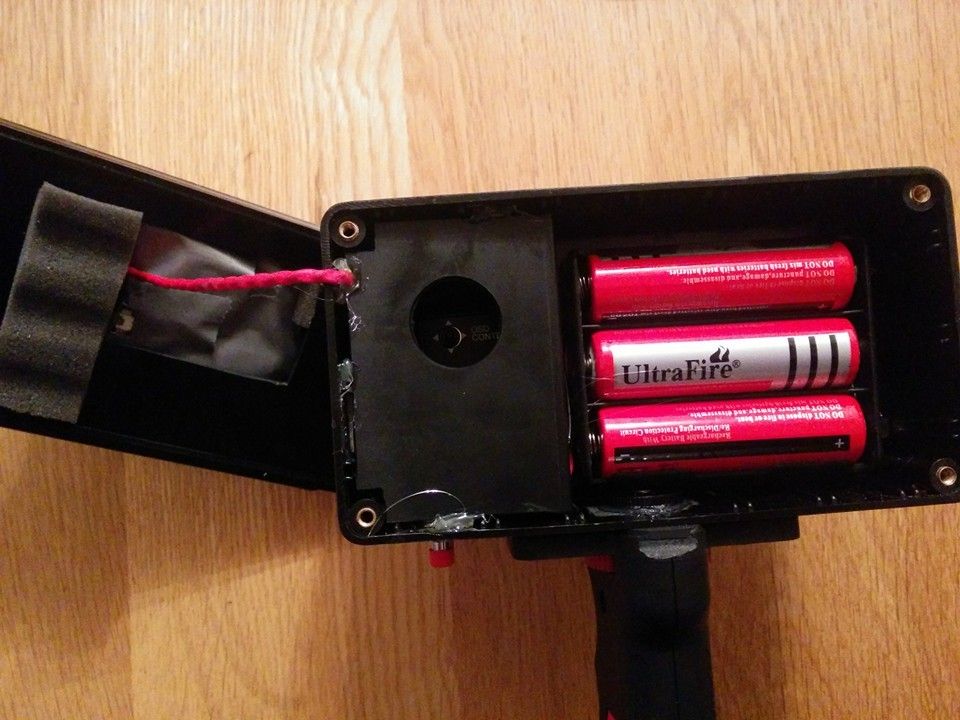

Hi just a big thank to this forum for helping me make my night vision kit and ive now finished my two add ons for me and one for a gift to my friend and my spotter which ive finished today ,ive used ians e700s in all and the t20 as pills running 2 18650 for the monitor and camera giving just under 7hrs runtime and a single 18650 to power the ir on each unit ,originally the voltage display was fitted to monitor 3 18650 battreys and use a step down to power the ir but was told it would cause interferance so decided best to split the battreys ive also added primary filter gel to the screens as i find it much nicer in the dark on the eye overall im very happy indeed with how they perform and just though id pop a few pics of the finished units up thank again tim




And the spotter




jeffo
Posts: 616
Joined: 01 Apr 2014, 06:30
Location: wales

Re: big thanks to all for the help

Post by jeffo » 20 Feb 2016, 15:36

very nice build you done

User avatar
Ooops
Posts: 266
Joined: 29 Dec 2013, 06:28
Location: Hampshire but on walk about some where hot

Re: big thanks to all for the help

Post by Ooops » 20 Feb 2016, 16:05

Absolutely cracking, well done :thumbup:
The artist formerly known as Jethro

User avatar
some bloke
TRADER MEMBER
Posts: 7492
Joined: 27 Jan 2012, 16:14
Location: Cornwall or Leicester

Re: big thanks to all for the help

Post by some bloke » 20 Feb 2016, 17:21

Very tidy work there. How are you accessing or charging the 18650's?

phoenix
BRUCE ALMIGHTY
Posts: 4749
Joined: 09 May 2012, 14:40
Location: Aberdeen

Re: big thanks to all for the help

Post by phoenix » 20 Feb 2016, 17:34

Full marks, they look absolutely great :thumbup:

Cheers

Bruce
LAND ROVER - THE WORLD'S WORST 4X4 BY FAR

Hardtail
Posts: 45
Joined: 19 Oct 2015, 12:47
Location: wolverhampton West midlands

Re: big thanks to all for the help

Post by Hardtail » 20 Feb 2016, 18:05

Thanks guys for the comments ,as for the charging for now im just going to unscrew the front to access the battreys but it will only really be the ir one ill need to change as ive ran 5 tests on the two battrey for the monitor and cam and getting over 7 hours run time on those ,wish i could have fitted a stepdown for the ir but never mind ,i didnt want to fit a charging module inside for the battreys as i prefer to charge them on an intellegent charger .

Hardtail
Posts: 45
Joined: 19 Oct 2015, 12:47
Location: wolverhampton West midlands

Re: big thanks to all for the help

Post by Hardtail » 20 Feb 2016, 18:11

couldnt fit an extra battreys in there to double the runtime on the ir but got some panasonics coming it



User avatar
jdk1
Posts: 1949
Joined: 13 Aug 2012, 17:11
Location: west kingsdown kent

Re: big thanks to all for the help

Post by jdk1 » 21 Feb 2016, 01:01

Thats a couple of quality builds there mate , well done :clap:

Silent Shooter
FOUNDER
Posts: 1478
Joined: 14 Oct 2011, 10:30
Location: Reading, Berkshire

Re: big thanks to all for the help

Post by Silent Shooter » 21 Feb 2016, 01:09

Very nice builds the carbon wrap gives a nice finish :thumbup:
Geoff

Darren.R
Posts: 178
Joined: 07 Dec 2013, 13:08
Location: NW Norfolk

Re: big thanks to all for the help

Post by Darren.R » 21 Feb 2016, 01:35

Really nice builds, you've obviously put a lot of attention into the detail as well as the function :thumbup:
